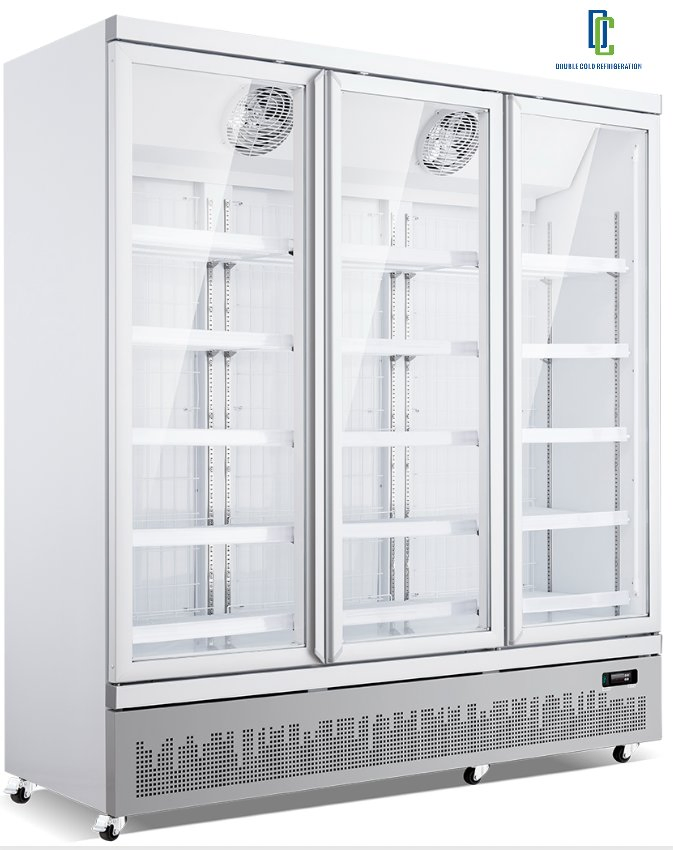

Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)
1 / 3
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)

Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LX1880CFA2H/L
Capacity
1600 L
Door Number
3 Doors
Type
Air Cooling
Door Type
Sliding Door
Power Source
Electricity
Temperature Control
Smart Thermostat
Defrost Type
Frost-Free
Certification
ISO, EMC, ETL
Specification
1880X705X2050 (mm)
Product Description

LX1880CFA2H/L Commercial Quick Freezer designed for the display and refrigeration of demanding environments. Featuring intelligent controls, LED lighting, and a durable white cabinet.

  • The split unit design (external unit) allows for outdoor installation.
  • Virtually zero indoor noise for a better environment.
  • Stronger refrigeration performance via outdoor condenser.
  • No indoor heat dissipation issues.

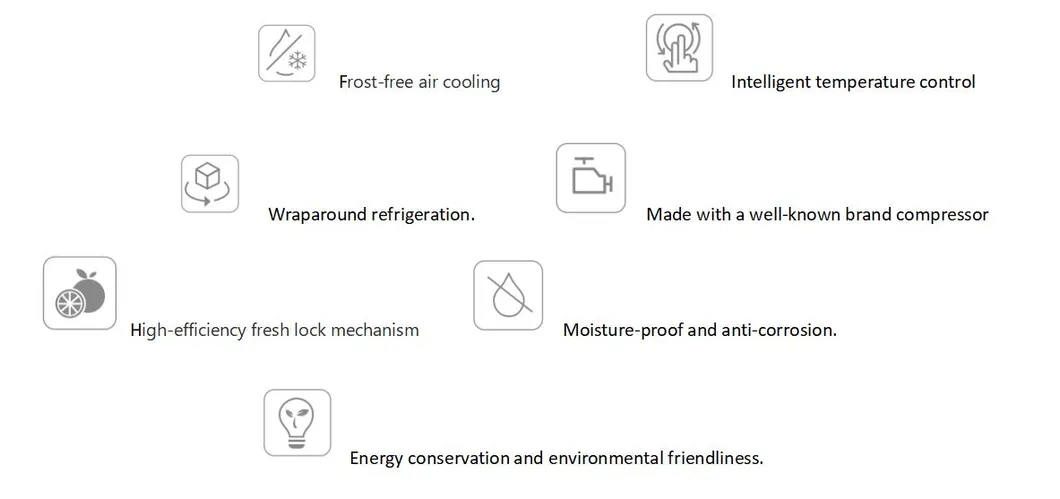

Performance Display
Key Features
  • High-Efficiency Cooling: Uses imported R290 compressor for fast, quiet, and efficient cooling.
  • Thorough Defrosting: Hot gasification frost removal combined with bottom heating ensures a frost-free interior.

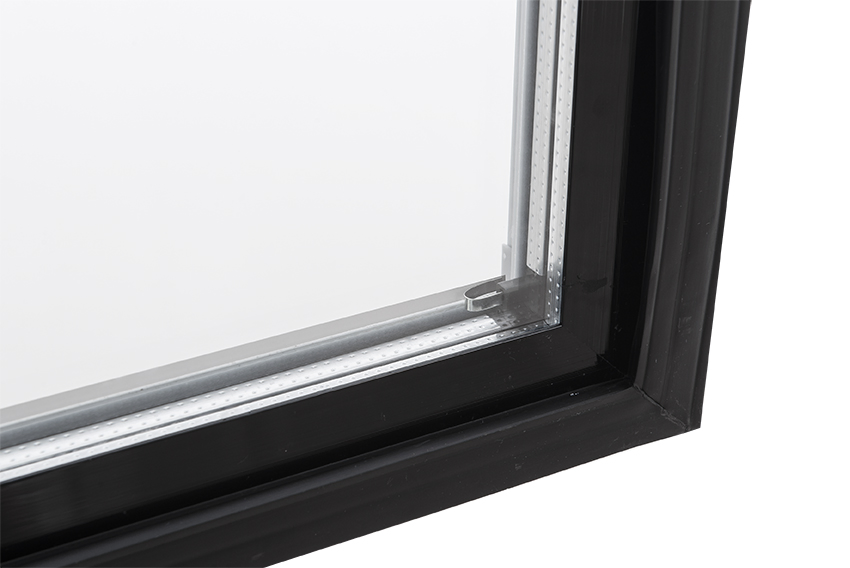

  • Advanced Door Design: Double hollow three-layer glass with optional electric heating defogging to keep display clear.

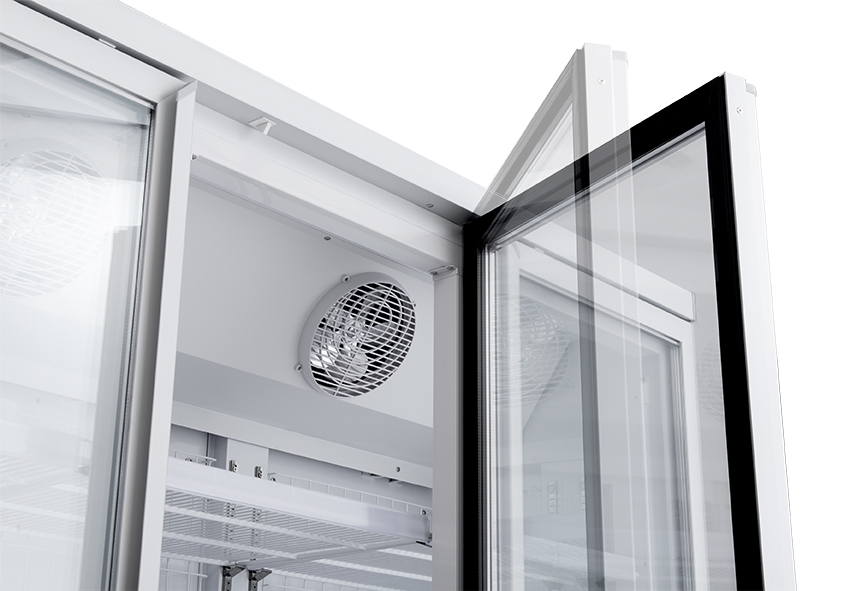

  • Energy Conservation: Bridge design isolates cold air; evaporator fan stops when door opens to prevent energy loss.
  • Thermal Insulation: Cyclopentane microcellular foaming technology provides superior insulation and eco-friendliness.
  • Uniform Temperature: Smooth air ducts and back plastic protection network ensure consistent cabinet temperatures.
Product Parameters

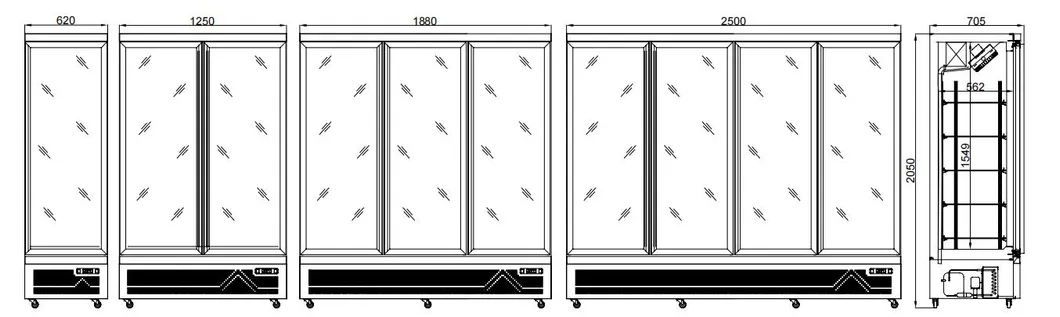

Specifications
Product Name Model Dimension (W x D x H mm) Volume (L) Power (W) Temperature (ºC) Defrost Way
Single-door Display Cabinet LX620CFA2H/L 620*705*2050 480 L 300 W 0ºC ~ 8ºC Off-cycle defrost
Double-door Display Cabinet LX1250CFA2H/L 1250*705*2050 1050 L 480 W 0ºC ~ 8ºC Off-cycle defrost
Three-door Display Cabinet LX1880CFA2H/L 1880*705*2050 1600 L 1080 W 0ºC ~ 8ºC Off-cycle defrost
Four-door Display Cabinet LX2500CFA2H/L 2500*705*2050 2200 L 1240 W 0ºC ~ 8ºC Off-cycle defrost
Technical Details
Voltage/Frequency 220-240V/50Hz
Material Black wrinkled printed steel (Outer), Mirror Finished Iron/Stainless steel (Inner)
Cooling Type Fan cooling

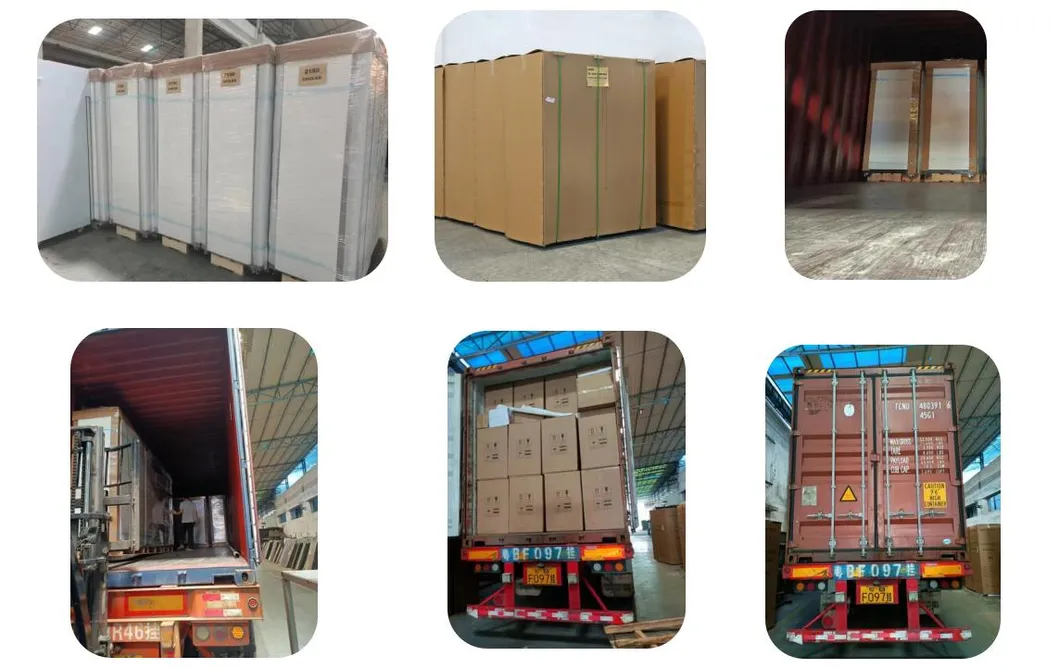

Packaging & Shipping
Packaging Shipping
After Sales & Quality Assurance
After Sales
Showroom & Workshop

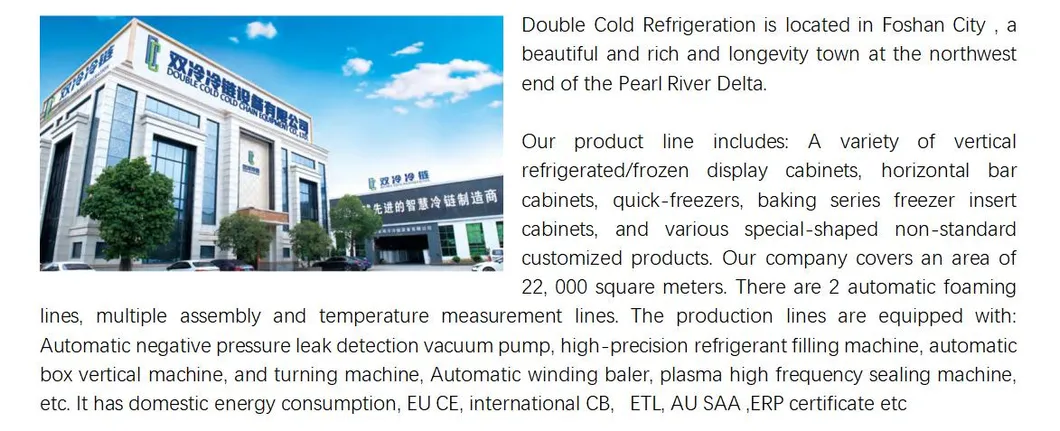

Factory Overview

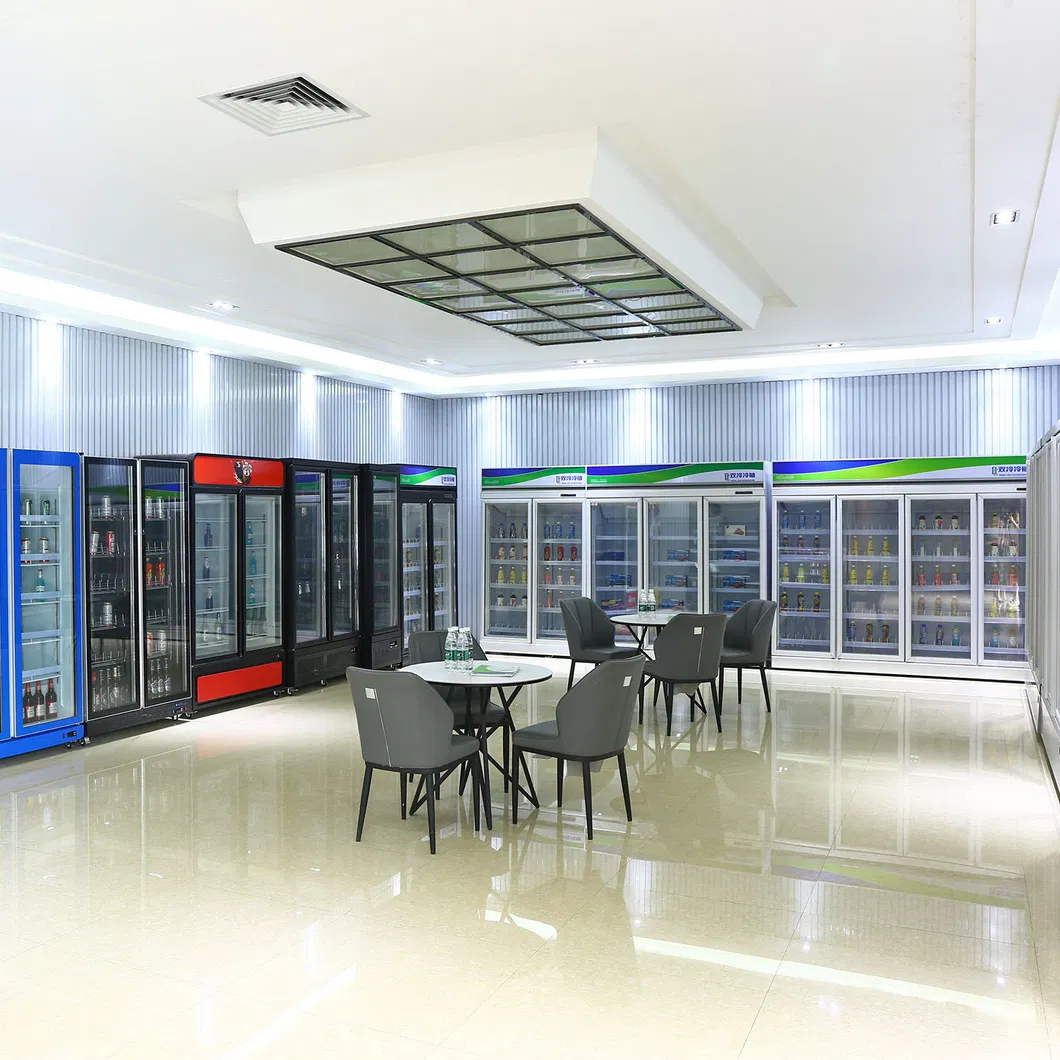

Workshop 1 Workshop 2 Workshop 3

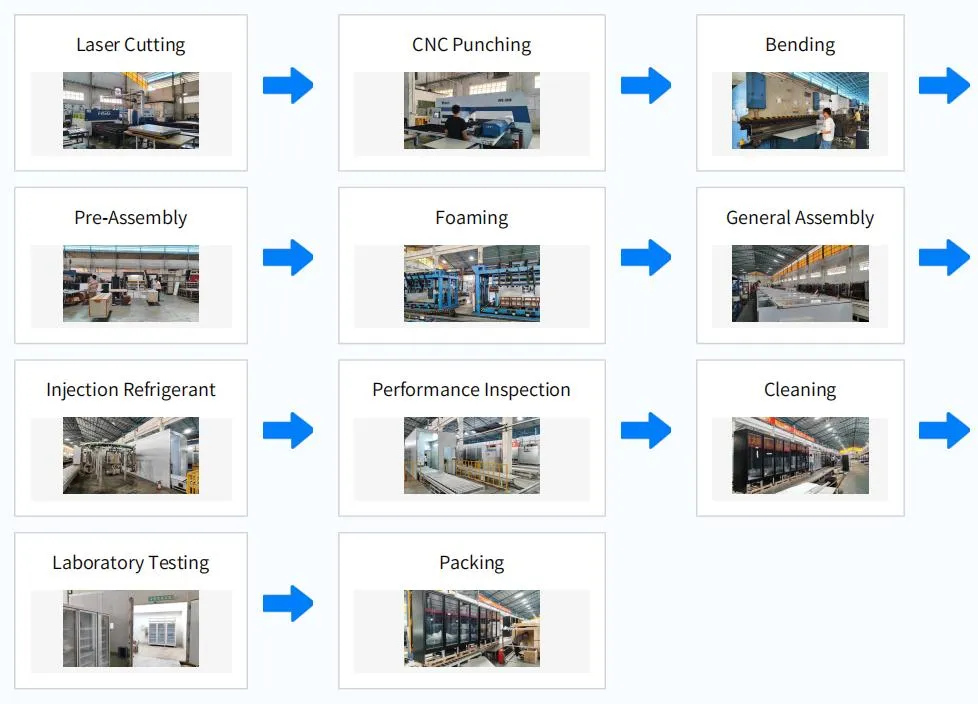

Production Process

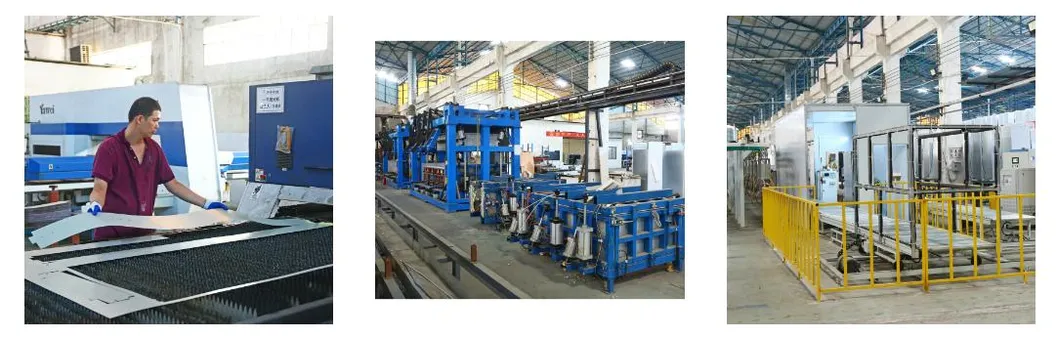

Process 1 Process 2
Certifications
Certifications
Frequently Asked Questions
What are the advantages of a split unit freezer?
The split unit places the compressor outdoors, which significantly reduces indoor noise and eliminates heat dissipation issues inside your facility.
Does the glass door fog up in humid conditions?
Our units feature double hollow three-layer glass. For high-humidity environments, an electric heating defogging door can be installed to ensure the glass remains clear.
What type of refrigerant is used?
The system utilizes R290 refrigerant, which is highly efficient, provides fast cooling, and is environmentally friendly.
How does the intelligent thermostat help in operations?
The smart thermostat ensures precise temperature control (0ºC ~ 8ºC) and manages the off-cycle defrosting automatically, maintaining optimal storage conditions.
Is the freezer energy efficient?
Yes, it uses cyclopentane microcellular foaming for superior insulation and a bridge design to isolate cold air, minimizing energy loss during daily use.
What is the standard packaging for shipping?
Each unit is secured with a splint foot, foam body protection, paper corners, and corner guards to ensure safety during transport.
